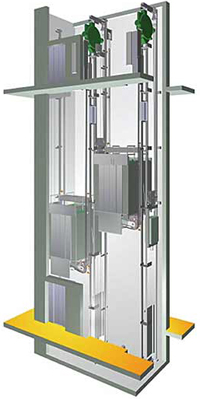

The Machine Roomless Elevators save construction space to a largeextent. The permanent magnet synchronous motored gearless machines have unapproachable superiority to the traction motor and save roughly 35% ofenergy consumption featuring excellent reliability and durability; they have a compact design, light weight & operate quietly and there is no need for lubrication.
Such elevators have become more and more popular because they run at low noise, are energy saving, easily maintainable and make the building look more aesthetically pleasing.

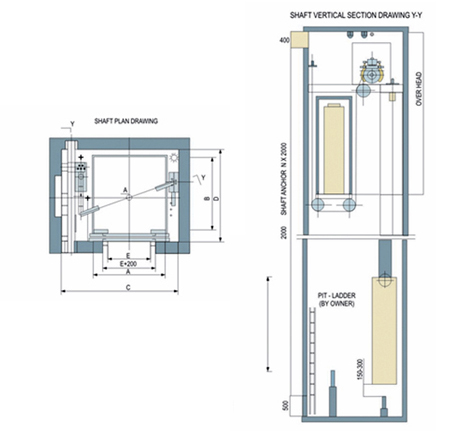

Civil
Dimensions
Load
Car-Inside
Hoistway
Entrance
Speed(m/s)
PIT-Depth
Overhead
Persons
KG
A
B
C
D
E
6
408
1100
1000
1800
1800
700
Upto 1.5
1600
5100
8
544
1300
1100
2000
1800
800
10
680
1350
1300
2100
2100
800
Over 1.5
2600
7000
13
884
1600
1500
2400
2350
900
16
1088
1800
1500
2600
2400
1000
20
1360
2000
1550
2800
2500
1000
NOTES : -
All Dimensions are in mm. and based on automatic doors requirement.
