The Vertical transportation system for modern hospitals have special requirements such as spacious & durable car, smooth & comfortable travel, accurate stop with emergency control features and above all, reliability with safety. The car dimensions are as per the Indian Standard requirements for Hospital lifts.
We have proficiency in producing a broad range of stretcher lifts that can be fitted in a stretcher or medical component with no trouble. Main features of these lifts are used for hospital purpose, modified as per client specifications, the best possible performance, and smooth operation. These stretcher lifts are mostly employed in hospitals & nursing homes.
Hospital Stretcher Elevator Cabins
Civil
Dimensions
SR.No.
LOAD
CAR INSIDE
LIFT WELL
ENTRANCE
REMARKS
PERSONS
KG
A
B
C
D
E
1
15
1020
950
2400
1700
3000
800
2
20
1360
1300
2400
2200
3000
1200
3
26
1768
1600
2400
2300
3000
1200
NOTES : -

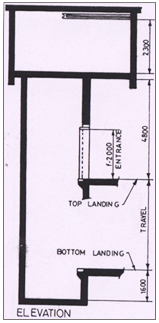

The total headroom has been calculated on the basis of a car height of 2.2 m.
In case of manually- operated doors, clear entrance will be reduced by the amount of projection of handle on the landing door.
Although 15 persons capacity lift is not a standard one, this is included to cover lifts of smaller capacity which can be used in small hospitals.
