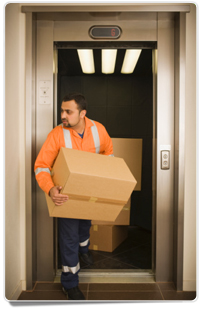

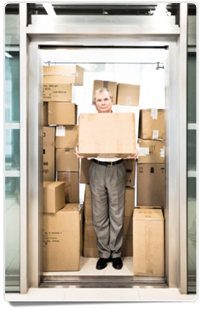

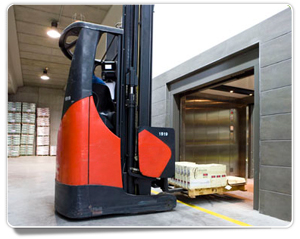

Goods & Freight Elevators

Unlike passenger lifts, these lifts operate at considerably reduced speeds. Recommended speeds range from 15 to 25 meters per minute(50 to 80 ft. per minute). Higher speeds increase the running costs.

The control system in these types of lifts is usually of the semi-automatic type, or is fully steering.

The lift-car is designed to withstand the heaviest load traffic.


Suitable protection at the entrance is given according to requirements. This ranges from swing type, 6 total gates and M. S. Channeling for Auto Doors.  All safety gears, required under the Indian Factory Act, are provided in the lifts.

The recently introduced Two Speed telescopic type gates, working with electric door operators can also be provided.



Goods Lift Cabins

Civil Dimensions
SR.No. LOAD CAR INSIDE LIFT WELL ENTRANCE REMARKS
  KG A B C D E
1 500 1100 1200 1900 1500 1100
2 1000 1400 1800 2300 2100 1400
3 1500 1700 2000 2600 2300 1700
4 2000 1700 2500 2600 2800 1700
5 2500 2000 2500 2900 2800 2000
6 3000 2000 3000 2900 3300 2000
7 4000 2500 3000 3400 3300 2500
8 5000 2500 3600 3400 3900 2500
NOTES : -
The width of the machine-room shall be equal to the lift well width 'c' subject to a minimum of 2500 m.m.
The total headroom has been calculated on the basis of a car height of 2.2 m.
Clear entrance width 'e' is based on vertical lifting car-door and vertical bi- parting landing doors for collapsible mid - bar doors the clear entrance width will be reduced by 200 m,m (maximum 1800 mm).
