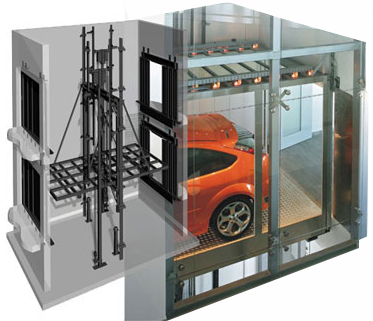

Our range of Car / Vehicle Elevator is extensively used for the easy movement of cars and vehicles across the floors of buildings, malls, hotels, hospitals and showrooms. Car Lifts are a significant part of high rise car parking.
Car lifts take care of features such as size, weight of the materials, to be transported and the system of handling. These are suitable for large parking of hundreds of car spaces, such as public parking with timely rates or private parking for big buildings. There are two operation panels in the car lift, which can make driver operate the lift without walking out of the car.
Car Lift Cabins

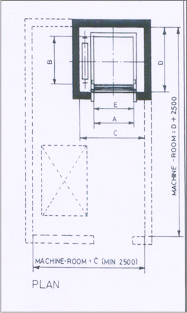

Civil
Dimensions
SR.No.
LOAD
CAR INSIDE
LIFT WELL
ENTRANCE
REMARKS
KG
A
B
C
D
E
1
500
1100
1200
1900
1500
1100
2
1000
1400
1800
2300
2100
1400
3
1500
1700
2000
2600
2300
1700
4
2000
1700
2500
2600
2800
1700
5
2500
2000
2500
2900
2800
2000
6
3000
2000
3000
2900
3300
2000
7
4000
2500
3000
3400
3300
2500
8
5000
2500
3600
3400
3900
2500
NOTES : -
The width of the machine-room shall be equal to the lift well width 'c' subject to a minimum of 2500 m.m.

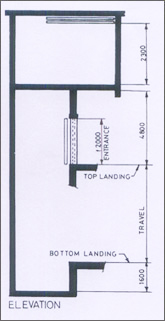

The total headroom has been calculated on the basis of a car height of 2.2 m.
Clear entrance width 'e' is based on vertical lifting car-door and vertical bi- parting landing doors for collapsible mid - bar doors the clear entrance width will be reduced by 200 m,m (maximum 1800 mm).
